Heating, ventilation, and air-conditioning systems cannot be properly evaluated by simply confirming that the equipment turns on and air comes out of the registers.
One of the most important measurements in HVAC performance testing is airflow.
Airflow determines how effectively an HVAC system can heat, cool, ventilate, dehumidify, and distribute conditioned air throughout a building. When airflow is too low—or improperly balanced—the HVAC equipment may operate while the building still experiences comfort problems, excessive energy consumption, moisture issues, equipment stress, or inadequate ventilation.
For building inspectors, energy professionals, HVAC technicians, commissioning providers, and building-performance contractors, measuring airflow provides objective data that can be documented and compared against design requirements, equipment specifications, and applicable standards.
HVAC airflow is generally expressed in cubic feet per minute (CFM).
CFM represents the volume of air moving through a duct, air handler, supply register, return grille, exhaust fan, or ventilation system each minute.
For example, a measured airflow of:
150 CFM
means approximately 150 cubic feet of air is moving through the measurement point every minute.
The important question isn't simply whether air is moving.
The question is:
How much air is actually moving?
That requires measurement.
Improper airflow can contribute to numerous building-performance problems.
Low airflow may result from:
Dirty or restrictive filters
Undersized ductwork
Excessive duct resistance
Closed or improperly adjusted dampers
Restricted return-air pathways
Improper blower settings
Dirty evaporator coils
Poorly designed duct systems
Excessive external static pressure
Installation deficiencies
High or unbalanced airflow can create a different set of problems, including noise, drafts, poor humidity control, pressure imbalances, and inefficient equipment operation.
Measuring airflow allows these conditions to be evaluated using actual field data rather than assumptions.
One of the most important concepts in HVAC testing is understanding the difference between air pressure and airflow.
Pressure is commonly measured in:
Pascals (Pa), or
Inches of water column (in. w.c.)
Airflow is typically measured in:
Cubic feet per minute (CFM)
A digital manometer can measure pressure very accurately, but a pressure reading by itself does not automatically tell us the airflow.
To convert a pressure measurement into CFM, the pressure must be associated with a device, flow grid, fan, duct configuration, or other measurement system having a known calibration relationship.
This relationship is commonly expressed using a flow equation or manufacturer-provided calibration data.
Conceptually:
Pressure → Calibration Relationship → Airflow (CFM)
This is why calibrated airflow measurement equipment is so important.
There are several accepted approaches to HVAC airflow measurement. The appropriate method depends on what is being measured, the equipment available, the HVAC configuration, and the applicable testing standard.
Common methods include:
A calibrated airflow grid can be temporarily installed in the HVAC return-air path.
Systems such as the Digital TrueFlow® Grid measure airflow through the air handler and can provide direct airflow measurements.
When installed at a filter location immediately adjacent to the air handler, the measurement can represent total air-handler airflow.
This approach is particularly useful when determining whether an HVAC system is actually moving the volume of air expected from the equipment.
A flow hood measures airflow directly at a supply register or return grille.
Flow hoods are particularly useful when evaluating:
Individual supply registers
Return-air grilles
Ventilation terminals
Room-to-room airflow distribution
System balancing
Register measurements can also help identify portions of a duct system that may be receiving substantially more or less airflow than expected.
Another airflow measurement technique uses a calibrated fan, such as a duct-testing fan, to reproduce the operating pressure created by the HVAC system.
The HVAC system's normal operating pressure is first measured.
A calibrated fan is then used to reproduce that pressure condition.
Because the airflow through the calibrated fan can be determined, the airflow necessary to reproduce the HVAC operating pressure can be used to estimate system airflow.
This method demonstrates an important building-science principle:
Pressure measurements become airflow measurements when they are combined with a known calibrated flow relationship.
Total External Static Pressure, commonly called TESP, measures the resistance the air handler must overcome while moving air through the HVAC distribution system.
TESP measurements can provide valuable information about system performance and help identify excessive resistance within the duct system.
Static pressure diagnostics can be especially useful when investigating low-airflow conditions.
However, airflow and static pressure should not automatically be treated as interchangeable measurements. The relationship between static pressure and airflow depends on the HVAC equipment, blower characteristics, system configuration, and measurement methodology.
Airflow testing is equally important for mechanical ventilation systems.
Residential ventilation equipment may include:
Exhaust-only ventilation fans
Supply ventilation systems
Heat Recovery Ventilators (HRVs)
Energy Recovery Ventilators (ERVs)
Balanced ventilation systems
Whole-house ventilation systems
For these systems, airflow testing determines whether the installed ventilation equipment is actually delivering the required amount of outdoor air or exhausting the required volume of indoor air.
A fan may be rated for a certain airflow by the manufacturer, but installed airflow can be substantially different.
Duct length, elbows, termination fittings, filters, dampers, grilles, and other restrictions can affect actual field performance.
That is why measured airflow should be distinguished from rated airflow.
Exhaust fans can also be tested using calibrated airflow measurement devices.
A flow meter is placed over the exhaust grille to capture the airflow. The pressure generated across the calibrated device is measured with a pressure gauge.
The device's calibration relationship then converts that pressure into airflow.
The basic measurement process is:
Exhaust airflow → Flow measurement device → Pressure reading → Calibration → CFM
This method can be used for equipment such as bathroom exhaust fans and certain whole-house ventilation exhaust systems.
Balanced ventilation systems introduce another important measurement requirement.
An HRV or ERV normally has two primary airflow streams:
Supply Air
Outdoor air delivered into the building.
Exhaust Air
Indoor air removed from the building.
These airflow streams should be measured independently.
For example:
Supply airflow: 155 CFM
Exhaust airflow: 142 CFM
The airflow difference would be:
155 − 142 = 13 CFM
The percentage difference can then be evaluated as part of determining whether the ventilation system is acceptably balanced under the applicable standard, manufacturer requirements, or project specifications.
Simply confirming that both fans operate is not sufficient.
The actual airflow should be measured.
One of the most common mistakes in ventilation verification is relying exclusively on the manufacturer's fan rating.
A fan might be advertised as a:
150 CFM fan
but that does not necessarily mean the installed system is moving 150 CFM.
The published rating represents fan performance under specified conditions.
Once installed, the fan must overcome the resistance of the actual system.
That resistance may include:
Fan → Duct → Elbows → Dampers → Grille → Exterior Termination
Every component creates resistance.
The actual installed airflow could therefore be substantially different from the nominal fan rating.
Field verification answers the question that matters:
What airflow is the system actually producing in this building?
A professional airflow test should produce more than a simple PASS or FAIL statement.
The test documentation should identify information such as:
Equipment tested
Equipment location
Test method
Measurement device
Gauge used
Pressure measurement
Calculated or directly measured CFM
Required airflow
Supply airflow
Exhaust airflow
Balance percentage, where applicable
Applicable standard or code requirement
Test result
Inspector or technician
Test date
This creates a defensible record of how the airflow determination was made.
Modern digital pressure gauges, airflow grids, calibrated fans, flow hoods, and mobile applications are making HVAC airflow measurements significantly easier to document.
The next evolution is integrating those measurements directly into inspection and commissioning software.
Instead of manually recording:
Pressure → CFM → Required CFM → Calculation → Pass/Fail
software can perform the calculation automatically when the equipment's calibration data and applicable testing criteria are known.
A field technician could enter or capture a pressure measurement and allow the software to:
Identify the selected measurement device.
Apply the appropriate calibration equation.
Convert pressure to airflow.
Determine measured CFM.
Compare measured airflow with the required airflow.
Calculate supply-to-exhaust balance.
Determine pass/fail status.
Store the original test data.
Generate a standardized test report.
This reduces manual calculations and creates a consistent digital record of the testing process.
PNWIG can extend building inspection and commissioning beyond basic inspection forms by creating structured workflows for HVAC and ventilation performance testing.
A comprehensive airflow testing can incorporate:
Equipment + Test Method + Pressure + Calibration + CFM + Code Requirement + Pass/Fail + Report
Our system allows building inspectors, energy professionals, commissioning providers, and HVAC technicians to collect field measurements while the software performs the underlying calculations and reporting.
The same workflow can support:
Whole-house ventilation testing
HRV airflow testing
ERV airflow testing
Supply and exhaust balancing
Exhaust fan verification
HVAC system airflow testing
Static pressure measurements

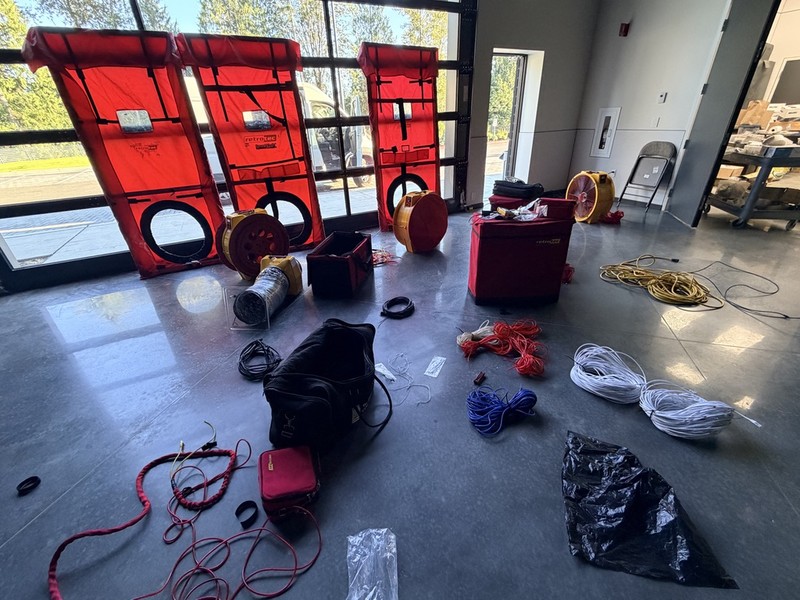

Blower-door testing
Duct-leakage testing
Building-performance commissioning
The objective is straightforward:
Measure the building, document the data, perform the calculations, and create a defensible report from one field workflow.
Modern building-performance testing is increasingly data driven.
A pressure reading in Pascals is useful.
A calculated airflow in CFM is better.
A documented airflow measurement compared against a defined requirement is actionable.
And when the measurement, equipment information, calculations, photographs, applicable requirements, and final report are maintained together, airflow testing becomes part of a comprehensive building-performance record.
That is the direction modern inspection and commissioning technology is heading—and the type of workflow PNWIG is designed to support.
